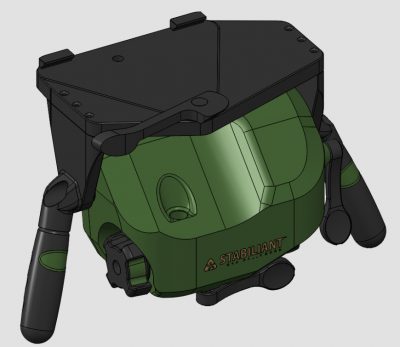

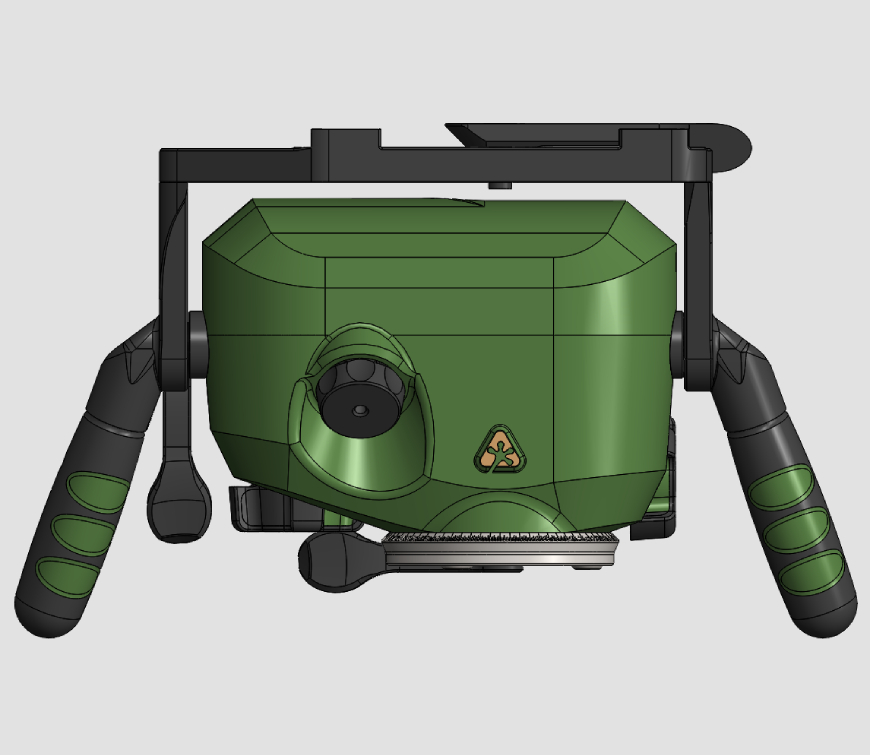

KONFINE-D 25

This Stable, Rugged and Sturdy Pan & Tilt Head is designed for quick manoeuvrability and lock-on the-target specially needed for Target Acquisition, Precision Aiming and other similar Defence Applications. This is torsionaly stiff for the operational wind speed up to 150 Km/hr and works in any climate. It is designed for fine adjustment for full range of Pan and Tilt movements when fine mechanism is engaged.

UNIQUE FEATURES:

• Dual Control Arm
• Independent Pan and Tilt Lock Brakes
• Graduated Pan and Tilt Scale
• Viscous Damping
• Quick Release Payload Interface Lever
• Bubble Level
• Illuminated Compass — SUUNTO Mini Clipper
• DMC Compatible
• Environmentally Sealed (Ip67)
• CORDURA Carrying Case with Shoulder Strap
• Optional Customised Payload Interface Plate

TECHNICAL SPECIFICATION:

  • Weight (kg)
    Payload (kg)
    Dimension (cm)
    Payload Mounting
    Pan Movement Range
    Pan Fine Adjustment (with Pan Knob)
    Tilt Movement Range
    Tilt Fine Adjustment (with Tilt Knob)
    Fine Movement Resolution (Pan & Tilt)
    Operating Temp. (°C)
    Storage Temp. (°C)


  • : 3.5
    : 25.0
    : 20.0Lx15.0Wx15.0H
    : 5/8″-11 UNC Thread
    : 360°
    : 360°
    : ± 45°
    : ± 45°
    : 1° per revolution
    : -40 to +70
    : -45 to +75

OTHER AVAILABLE COLOURS:

Sand

OG

Whole Black

Camo 1

Camo 2
